Graphite Wire Cutting Machine SVI 250-80

Name: Graphite Wire Cutting Machine SVI 250-80 - Vimfun Diamond Wire Saw
SKU: SVI 120-80
Price: 680.00 USD
Availability: InStock

SKU: SVI 120-80

Talk Directly With Manufacturer

Contact us to confirm if the equipment suits your needs. Click Here！

This is a custom-designed graphite wire cutting machine that uses a closed-loop diamond wire for cutting. It can automatically perform large-scale slicing of materials. When paired with specialized attachments, it can also cut materials with a tapered profile. The machine delivers smooth cutting surfaces with high precision, narrow kerfs, and minimal dust pollution.

$680.00

Function
Size	Clear

Compare

Add to wishlist

Vertical Machine Size

1,Match Equipment Size to Material Dimensions:
The size of the equipment should correspond to the primary materials being cut. Oversized equipment may reduce cutting efficiency and compromise product precision.

2,Z-Axis Compatibility:
The equipment's Z-axis should be 5 to 10 cm larger than the Z-axis of the workpiece to ensure proper operation.

3,Y-Axis Consideration:
When the Y-axis of the workpiece exceeds the automatic feed length of the equipment's Y-axis, the machine can still complete the cutting process automatically, but only for automatic slicing operations.

X-axis stroke (mm)	Y-axis stroke (mm)	Z-axis space(mm)
500	500	500
500	500	600
600	600	600
600	600	500
800	800	800
1200	600	600
1500	600	600
1800	600	300
2400	600	400
2900	600	400
Customize on request	Customize on request	Customize on request

Shipping

We will put the machine into a wood crate and send the machine to your given address.It can be send by sea,by air or by train. The delivery cost will be given after have your detailed address.

Product Warranty

We offer a one-year free warranty on the equipment, covering the replacement of non-consumable parts. Additionally, we provide lifetime after-sales support for our equipment. Any issues can be diagnosed and repaired at any time by contacting us.

Machine Training

The equipment comes with a detailed user manual, and on-site training at our factory is available. If needed, our engineers can also visit your company for training.

Overall Information

We are a manufacturer of diamond wire cutting equipment. In addition to the listed equipment models, we can also customize machines according to customer requirements. By providing the product dimensions to be cut and the cutting specifications, we can quickly tailor the equipment to meet personalized needs.

The cutting tool used by our equipment is a diamond wire, which is available in both closed-loop and non-closed-loop types. The equipment structure includes vertical, horizontal, and gantry types. The cutting methods include dry cutting and wet cutting. The equipment functions are categorized into semi-automatic cutting, fully automatic slicing, CNC cutting of external profiles, CNC cutting of internal hole profiles, cutting of taper angles, and multi-wire cutting.

Each model of the listed equipment is available in various sizes, including large, medium, and small, to meet the cutting requirements of different material dimensions.

The wet cutting equipment can also be used for dry cutting. However, if you need to perform water-assisted cutting on a dry cutting machine, please contact us for waterproofing modifications.

The power supply of the equipment can be customized according to customer requirement.

Please contact us before placing an order to ensure that the selected equipment meets your needs.

Product Parameter

Cut Method	Dry Cut
Function	CNC Slicing , Taper Cut , Inside Profile Cut
Size	≤ 1000 mm , ≤ 200 mm , ≤ 2000 mm , ≤ 2500 mm , ≤ 3000 mm , ≤ 400 mm , ≤ 600 mm , ≤ 800mm , ≤1500 mm

Contact Us

Description

Product Overview

The Graphite Wire Cutting Machine SVI 250-80 is a state-of-the-art cutting solution specifically engineered for processing ultra-large graphite materials. Capable of performing segmenting, slicing, and taper cutting, this machine is the ultimate tool for handling oversized graphite blocks. With its fast cutting speed, superior surface quality, compact footprint, and user-friendly operation, the SVI 250-80 is designed to meet the most demanding industrial requirements while minimizing waste, dust, and environmental impact.

Product Details

Key Features

Versatile Cutting Functions
- Performs segmentation, slicing, and taper cutting, providing flexibility for processing various shapes and designs.
High Cutting Speed
- Rapid cutting capability increases productivity while maintaining precision and surface quality.
Compact Design
- Occupies minimal floor space, making it ideal for facilities with limited operational areas.
Exceptional Surface Quality
- Delivers clean, smooth cutting surfaces, reducing or eliminating the need for post-processing.
Minimal Waste and Dust
- Thin cutting kerf and advanced dust collection system reduce material loss and environmental pollution.
User-Friendly Operation
- Intuitive interface and simple controls make it easy to operate, even for new users.

Advantages

Large-Scale Processing: Specially designed for ultra-large graphite blocks, ensuring high efficiency and versatility.
Precision and Quality: Consistent, clean cuts with minimal material waste.
Environmental Sustainability: Low dust generation and pollution contribute to a cleaner workspace.
Space-Efficient: Compact design ensures it fits seamlessly into existing production lines
Cost-Effective: Reduces material waste, energy consumption, and maintenance costs.

Applications

The SVI 250-80 is the ideal solution for:

Ultra-Large Graphite Block Processing: Suitable for industries requiring precision cutting of large graphite components.

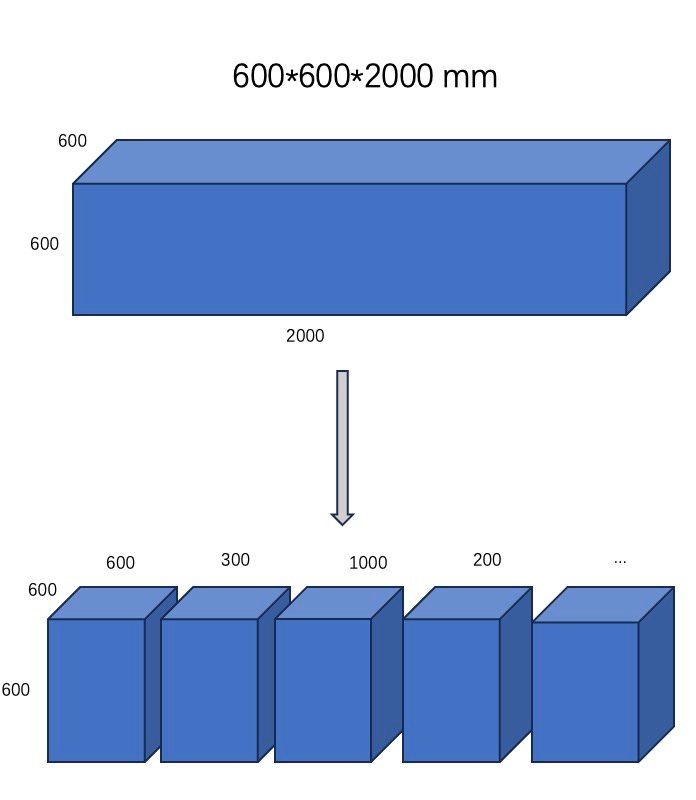

Graphite Segmentation: Efficiently dividing large graphite blocks into manageable sections.

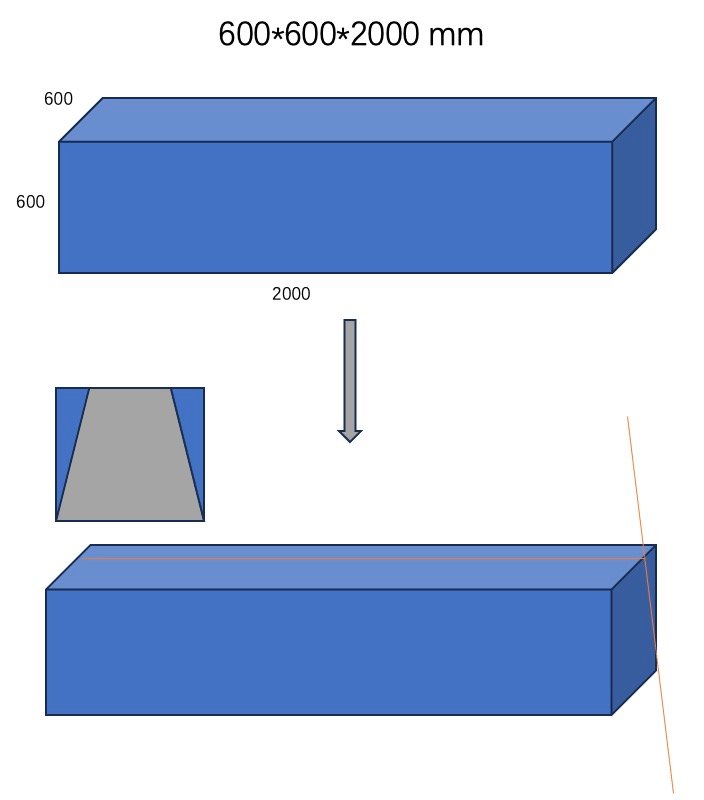

Graphite Taper Cutting: Creating precise taper cuts for specialized applications.

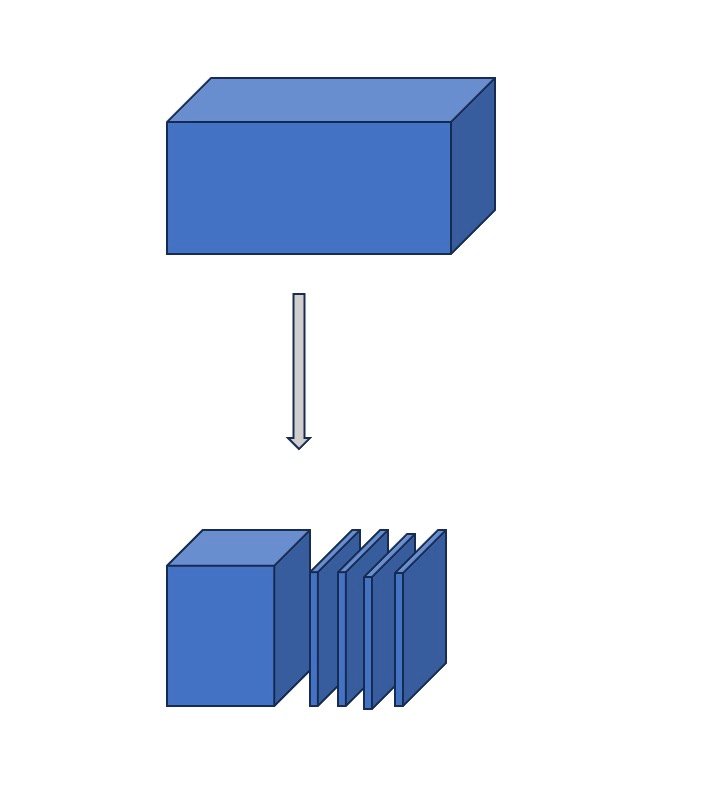

Graphite Slicing: Producing thin, high-quality slices for industrial use.

With its advanced features, compact design, and outstanding performance, the Graphite Wire Cutting Machine SVI 250-80 is the go-to choice for manufacturers needing a powerful and reliable solution for ultra-large graphite processing.
