Quartz Cutting Wire Saw SH40-R

Name: Quartz Cutting Wire Saw SH40-R - Vimfun Diamond Wire Saw
SKU: SH40-R
Price: 1.00 USD
Availability: InStock

SKU: SH40-R

Talk Directly With Manufacturer

Contact us to confirm if the equipment suits your needs. Click Here！

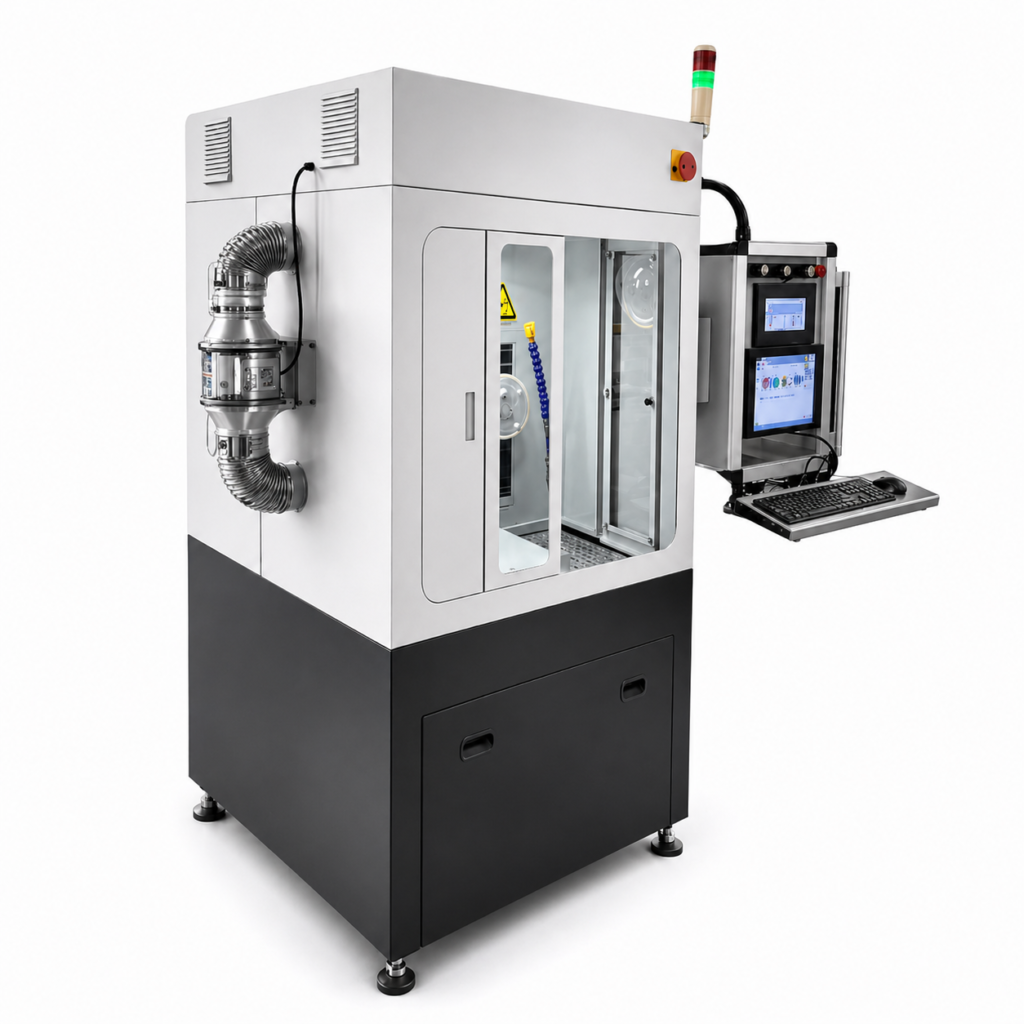

This is a compact horizontal cutting machine, also known as a Quartz Cutting Wire Saw, using a closed-loop diamond wire as the cutting tool. It is capable of cutting any material with hardness lower than diamond. The machine is equipped with a rotating axis on the material loading table, which ensures smoother cutting surfaces and faster cutting speeds.

$1.00

Compare

Add to wishlist

Vertical Machine Size

1,Match Equipment Size to Material Dimensions:
The size of the equipment should correspond to the primary materials being cut. Oversized equipment may reduce cutting efficiency and compromise product precision.

2,Z-Axis Compatibility:
The equipment's Z-axis should be 5 to 10 cm larger than the Z-axis of the workpiece to ensure proper operation.

3,Y-Axis Consideration:
When the Y-axis of the workpiece exceeds the automatic feed length of the equipment's Y-axis, the machine can still complete the cutting process automatically, but only for automatic slicing operations.

X-axis stroke (mm)	Y-axis stroke (mm)	Z-axis space(mm)
500	500	500
500	500	600
600	600	600
600	600	500
800	800	800
1200	600	600
1500	600	600
1800	600	300
2400	600	400
2900	600	400
Customize on request	Customize on request	Customize on request

Shipping

We will put the machine into a wood crate and send the machine to your given address.It can be send by sea,by air or by train. The delivery cost will be given after have your detailed address.

Product Warranty

We offer a one-year free warranty on the equipment, covering the replacement of non-consumable parts. Additionally, we provide lifetime after-sales support for our equipment. Any issues can be diagnosed and repaired at any time by contacting us.

Machine Training

The equipment comes with a detailed user manual, and on-site training at our factory is available. If needed, our engineers can also visit your company for training.

Overall Information

We are a manufacturer of diamond wire cutting equipment. In addition to the listed equipment models, we can also customize machines according to customer requirements. By providing the product dimensions to be cut and the cutting specifications, we can quickly tailor the equipment to meet personalized needs.

The cutting tool used by our equipment is a diamond wire, which is available in both closed-loop and non-closed-loop types. The equipment structure includes vertical, horizontal, and gantry types. The cutting methods include dry cutting and wet cutting. The equipment functions are categorized into semi-automatic cutting, fully automatic slicing, CNC cutting of external profiles, CNC cutting of internal hole profiles, cutting of taper angles, and multi-wire cutting.

Each model of the listed equipment is available in various sizes, including large, medium, and small, to meet the cutting requirements of different material dimensions.

The wet cutting equipment can also be used for dry cutting. However, if you need to perform water-assisted cutting on a dry cutting machine, please contact us for waterproofing modifications.

The power supply of the equipment can be customized according to customer requirement.

Please contact us before placing an order to ensure that the selected equipment meets your needs.

Product Parameter

Cut Method	Wet Cut
Function	CNC Slicing
Size	≤ 400 mm

Contact Us

Description

Quartz Cutting WIre Saw Product Details

Key Features

Three-Axis Cutting System (Y, Z, and Rotational Axis)
- The rotational axis allows the workpiece to rotate during cutting, enhancing the sharpness of the cutting wire and ensuring optimal performance on ultra-hard materials.
Enhanced Cutting Speed and Quality
- Faster cutting speeds with a polished finish on the cutting surface, reducing or eliminating the need for secondary polishing processes.
Precision and Versatility
- Ideal for cutting delicate and brittle materials, ensuring high-quality cuts with minimal material waste.
Integrated Water Circulation System
- A built-in water recycling system keeps the cutting area clean, cools the cutting wire, and ensures efficient operation with minimal environmental impact.

Advantages

Sharper Cutting Performance: The rotating axis maintains the cutting wire’s sharpness, making it ideal for cutting tough materials like quartz and K9.
Superior Surface Finish: Polished cutting surfaces reduce post-cutting processing time and cost.
High Efficiency: Faster cutting speeds improve productivity and reduce operational downtime.
Convenient Operation: The water circulation system simplifies operation and maintenance while promoting sustainability.
Wide Material Compatibility: Capable of cutting a variety of ultra-hard and brittle materials.

Applications

Quartz: Used in optical and industrial applications.
K9 Optical Glass: For high-precision optical components.
Microcrystalline Glass: For specialized industrial and scientific uses
Germanium Crystals: Used in infrared optics and semiconductors.
Silicon Rods: Essential for photovoltaic and semiconductor industries.

Customer Reviews

Rated 0 out of 5

0 reviews

Rated 5 out of 5

0

Rated 4 out of 5

0

Rated 3 out of 5

0

Rated 2 out of 5

0

Rated 1 out of 5

0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “Quartz Cutting Wire Saw SH40-R”

Silicon Cut

$1.00

Key Features of Endless Diamond Wire Cutting Equipment:

Endless Wire Design:
- Utilizes a closed-loop diamond wire, typically less than 10 meters in length, which is significantly shorter compared to traditional diamond wire cutting machines (wire lengths exceeding 1000 meters).
- The endless design eliminates the need for frequent wire changes, improving operational efficiency.
High-Speed Wire Operation:
- The diamond wire operates at speeds of up to 80 meters/second, enabling fast cutting.
- High-speed operation ensures superior surface smoothness, eliminating or significantly reducing wire marks.
Wide Range of Applications:
- Suitable for cutting hard and brittle materials such as silicon, graphite, sapphire, quartz, alumina ceramics, silicon carbide, silicon nitride, and boron nitride.
- Especially effective for non-conductive materials (e.g., graphite) that cannot be processed using traditional EDM cutting techniques.
Exceptional Cutting Quality:
- Produces smooth cutting surfaces, often eliminating the need for additional polishing.
- Reduces material waste, which is particularly beneficial when working with expensive materials.
Eco-Friendly Operation:
- Can use water cooling or eco-friendly cooling liquids to minimize heat buildup and reduce dust emissions during cutting.

Application Fields:

Semiconductors: Cutting silicon wafers, sapphire substrates, quartz substrates, etc.
Optics: Processing optical glass, lens materials, and other precision optical components.
Renewable Energy: Cutting solar crystalline silicon and battery materials.
Aerospace: Precision machining of high-hardness ceramics and composite materials.
Other Industries: Precision machining of electronic ceramics, graphite molds, and more.

Comparison to Traditional Diamond Wire Cutting Machines:

Endless diamond wire machines feature shorter, more stable wires with higher operating speeds, making them ideal for precision applications.
No need to alternate the wire's running direction, simplifying the mechanical structure and reducing maintenance costs.

If you'd like more detailed information or strategies to promote and sell this type of equipment, I’d be happy to assist further!
